Complex Gearbox Housing — Fixturing and Stress-Controlled CNC Machining

CNC MACHINING CASE STUDY

Controlled fixturing for a thin-wall, irregular gearbox housing

This complex housing required a machining plan that controlled clamping distortion before final finishing. The process combined planned machining allowance, a dedicated support plate and a staged stress-release sequence.

PartComplex gearbox housing
ChallengeIrregular, thin-wall geometry
FixturingSupport plate + allowance
Machining planRough, release, finish
Gearbox housing support fixture and CNC machining setup

Original case process imagery: fixture concept and CNC machining setup.

FIXTURING STRATEGY

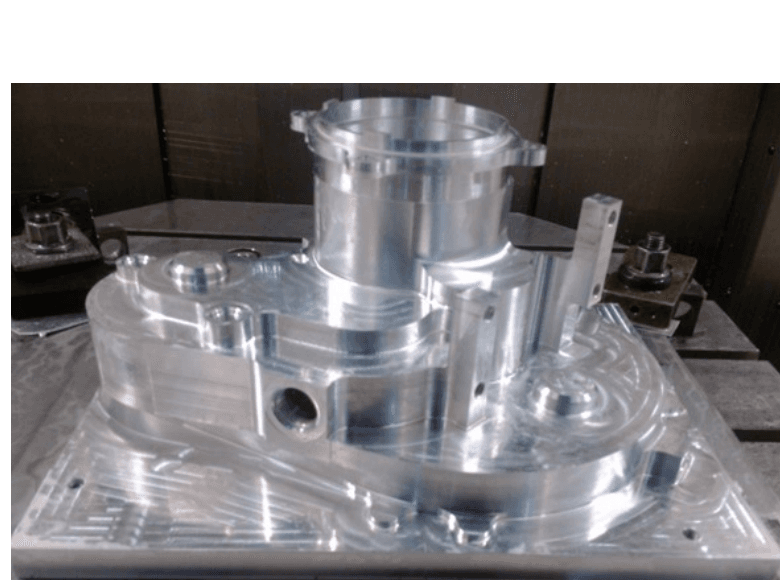

Gearbox housing secured on a dedicated tooling plate
Hold on planned material, not on critical finished geometry.
Temporary machining allowance creates the safe clamping interface.

Build the holding strategy into the part process

The original process retained material at deliberate clamping positions, then used a support plate to maintain rigidity while the irregular housing was roughed.

10 mm machining allowance

Allowance was retained at the clamping locations so the fixture could hold the workpiece without loading critical finished surfaces.

Reinforced support plate

The support plate was made 10 mm thicker at the indicated area to provide sufficient strength during machining.

Controlled contact

Clamping pads were set 0.1 mm lower to maintain the required flatness and avoid interference.

MACHINING SEQUENCE

Four controlled stages before final geometry

01

Prepare fixture

Reserve the planned allowance and establish stable support on the tooling plate.

02

Rough machine

Machine while the housing is supported and the functional surfaces remain protected.

03

Stress release

Leave the part free for 24–72 hours to reduce internal stress before final finishing.

04

Finish & remove

Complete final geometry, then remove the temporary process ribs and holding material.

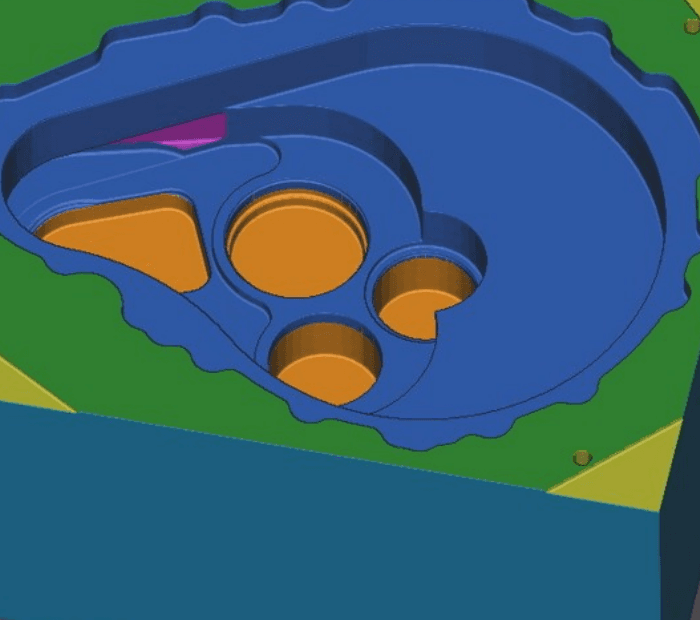

CAD layout showing gearbox housing held during rough machining

Why the roughing layout matters

Rough machining was planned around the support and clamping concept rather than treating fixturing as a later shop-floor detail.

  • Support and clamping are defined before machining starts.
  • Critical surfaces are finished only after the stress-release interval.
  • Temporary process material is removed at the final stage.

ENGINEERING TAKEAWAY

For irregular housings, distortion control begins with how the part is held.

The fixture access, retained allowance and finishing sequence need to be designed as one system. This case shows the practical role of dedicated support before final CNC machining.
